Safety Guidance Lighting Rope

Safety guidance lighting rope is designed to emergency escue and relief, subway guidance, mine rescue, field rescue, underground garage, tunnel, underground shopping mall, warehouse, cave, tunnel and other aspects of rescue.
Availability:
Quantity:
  • WS-SLR100

  • WINSAFE


Safety Guidance Lighting Rope

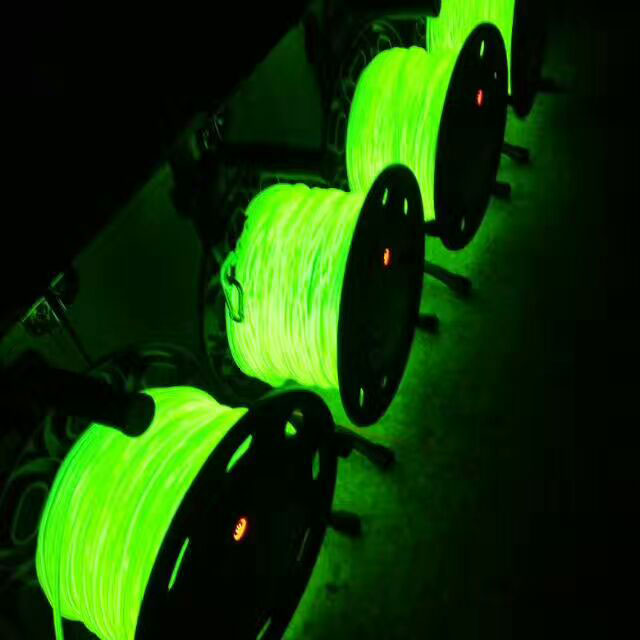

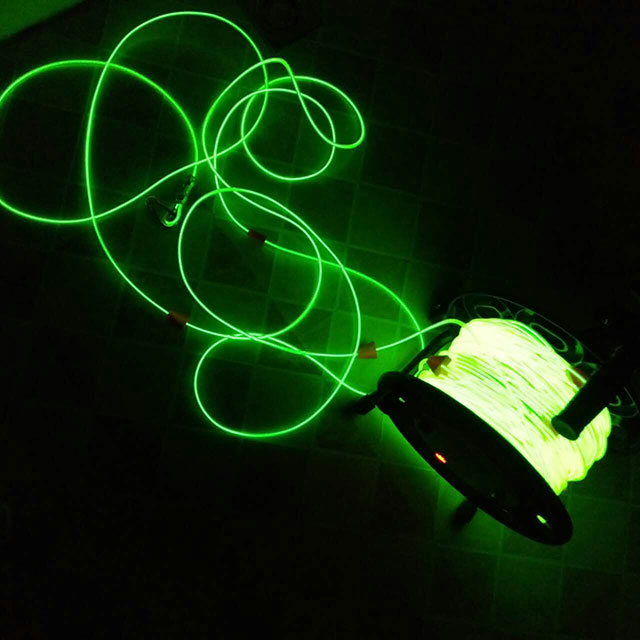

Safety-guidance-lighting-ropeSafety-guidance-lighting-rope---4

Safety Guidance Lighting Rope Application:

Lighting and emergency escape instruction for emergency escue and relief, subway guidance, mine rescue, field rescue, underground garage, tunnel, underground shopping mall, warehouse, cave, tunnel and other aspects of rescue, exploration of the disaster, life saving etc.

Safety Guidance Lighting Rope Features:

1. It’s designed in an integrated way. The line body is EL cold light source luminous material, which will not generate heat, and the solid core structure is absolutely waterproof.

2. It is illuminated in a space 5-8m wide without light source, and the objects in 5mm are clearly distinguishable.

3.Don’t be afraid of foot steps, bending resistance, soft, folding and bending, arbitrary to knot, trim, splice without affecting the luminous performance, and it can repeatedly fold, bend and knot

4. Surface PVC ignition point: above 500 ° c. Ambient temperature: -20 ° c to 100 ° c

5. Equipped with leakage, short circuit, overcharge, overdischarge protection function.

6. It is powered by explosion-proof lithium battery, which can be moved at will

7. High brightness, good safety performance. Working current is less than 400 ma, no electric shock hazard to human body

8. Easy to use, energy saving,hand wheel retractable while light emitting , continuous working for 8-10 hours, flashing can work for 16-20 hours


Specification

Model

WS-SLR100

Rope Diameter

5mm

Color

Ice blue yellow-green

Luminous working current

0.3A/m

Isolation voltage

>4000V

Charging mode

AC220, DC12V

Using Time (Charging one time)

8hours

Lithium battery capacity

6600ma

Waterproof

IP66

Pull force

>300N

Rope length

50m/100m(Optional)
