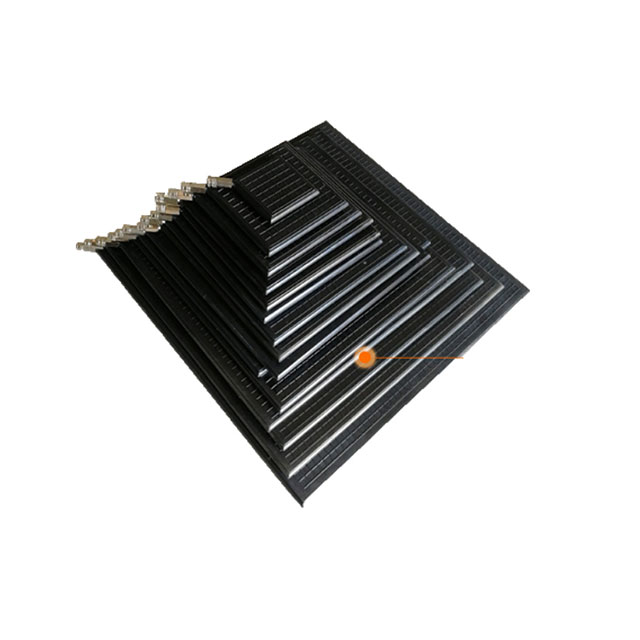

AC-1-68
WINSAFE
Model | Size (cm) | Insert Height (mm) | Max.Lifting Height (cm) | Max. Lifting Force (T) |
AC-1 | 15*15 | 24 | 7.5 | 1.1 |
AC-5 | 25*25 | 26 | 12 | 5 |
AC-8 | 32*32 | 26 | 16.5 | 9 |
AC-10 | 37*37 | 26 | 20 | 11 |
AC-12 | 45*45 | 26 | 22 | 15.5 |
AC-20 | 50*50 | 26 | 25 | 20 |
AC-24 | 55*55 | 26 | 27 | 25 |
AC-28 | 60*60 | 28 | 30 | 29 |
AC-32 | 65*65 | 29 | 33 | 35 |
AC-40 | 75*75 | 29 | 40 | 43 |
AC-42 | 85*85 | 29 | 47 | 46 |
AC-48 | 90*90 | 29 | 50 | 54 |
AC-68 | 95*95 | 29 | 52 | 65 |
6.8L Air Cylinder | |
Water capacity | 6.8L |
Nominal Diameter | 157mm |
Nominal Length | 528mm |
Thread | M18×1.5 |
Gas Filled | Air |
Air Volume | 1835L |
Working Pressure | 30MPa(4350PSI) |
Test Pressure | 50MPa(7250PSI) |
Break Pressure | ≥102MPa(14790PSI) |
Net Weight | 3.8lg |
Double Control | |
NO. | Tool Description |
1 | Pressure Reducer |
2 | Controller |
3 | Air-Release Valve |
4 | Hose |
