BJQ-72/0.6
WINSAFE

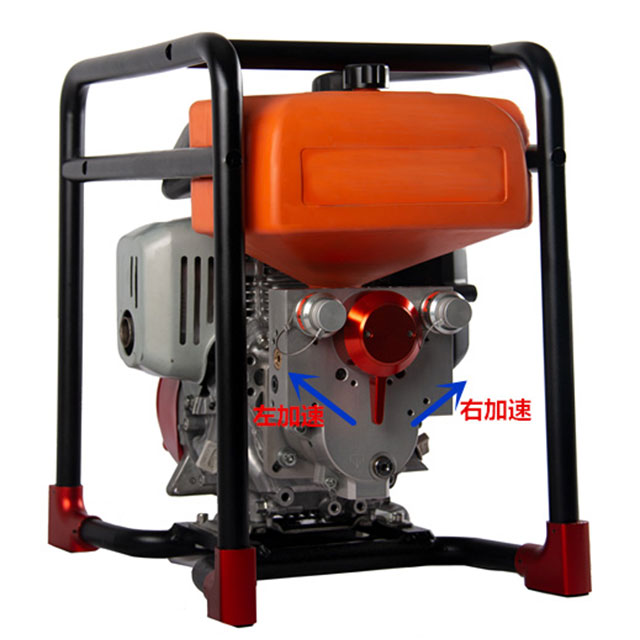

Firefighitng Rescue Hydraulic Pump
Hydraulic Pump Features:
1、Dour-stroke GX100 engine.
2、Double output, powered for two tools at the same time.
3、Connector : Axis of flat, single connector, switch tools with pressure.
4、The "automatic pressurization" design, eliminates the need for a hydraulic valve, optimized operating procedures and reduce fuel consumption.
5、Turbo Function: "Double Speed Mode" switch. Once opened, double flow for one tool, the rescue efficiency of one tool can be doubled.
6、The design of the oversized hydraulic oil tank can be used for various large and very large hydraulic tools.
7、The frame structure is used in the periphery, which can avoid the host collision and directly enter the rescue site by two people.
Rated Working Pressure | 72MPa(720bar) |
Rated Power | 1.7KW/3600(r/min) |
Rated Rotating Speed | 3400±150 rpm |
Flow rate low pressure - high pressure | 2*2.4 L/min-2*0.6 L/min |
Flow rate turbo low pressure - high pressure | 1*4.5L/min-1*1.2L/min |
Gasoline Volume | 0.77L |
Hydraulic Oil Volume | 4.5L |
Weight | 25KG |
Size | 400x305x460mm |
Accessories: 2*5m hydraulic hose |
Axis of flat Coupling
Single hose single coupling
Firefighitng Rescue Hydraulic Pump
Hydraulic Pump Features:
1、Dour-stroke GX100 engine.
2、Double output, powered for two tools at the same time.
3、Connector : Axis of flat, single connector, switch tools with pressure.
4、The "automatic pressurization" design, eliminates the need for a hydraulic valve, optimized operating procedures and reduce fuel consumption.
5、Turbo Function: "Double Speed Mode" switch. Once opened, double flow for one tool, the rescue efficiency of one tool can be doubled.
6、The design of the oversized hydraulic oil tank can be used for various large and very large hydraulic tools.
7、The frame structure is used in the periphery, which can avoid the host collision and directly enter the rescue site by two people.
Rated Working Pressure | 72MPa(720bar) |
Rated Power | 1.7KW/3600(r/min) |
Rated Rotating Speed | 3400±150 rpm |
Flow rate low pressure - high pressure | 2*2.4 L/min-2*0.6 L/min |
Flow rate turbo low pressure - high pressure | 1*4.5L/min-1*1.2L/min |
Gasoline Volume | 0.77L |
Hydraulic Oil Volume | 4.5L |
Weight | 25KG |
Size | 400x305x460mm |
Accessories: 2*5m hydraulic hose |
Axis of flat Coupling
Single hose single coupling
