PBA6.8
WINSAFE

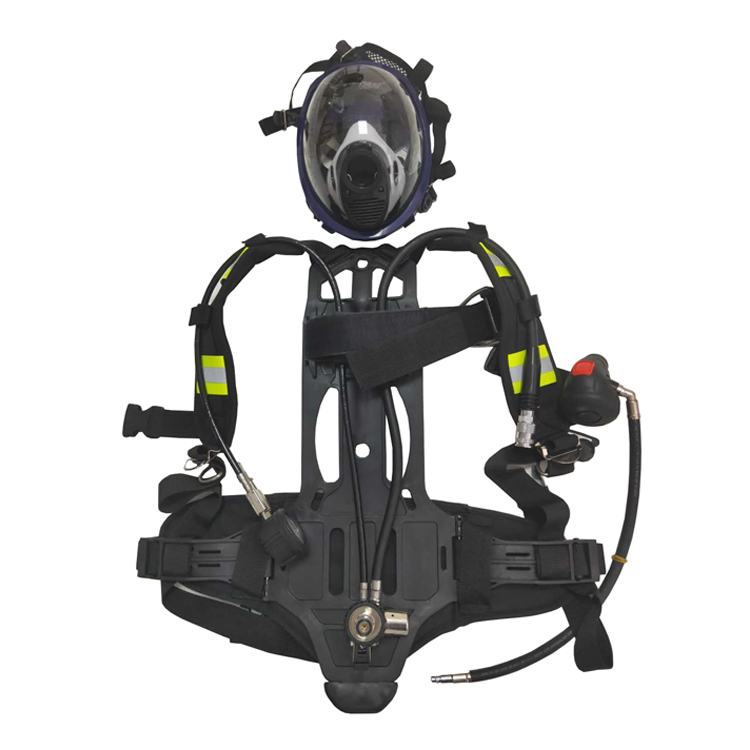

Firefighter Personal Protection Equipment Breathing Apparatus
Protect firefighters and rescue Personnel to against inhaling harmful toxic gases, fumes, and harmful pollutants suspended in the air during fire fighting or rescue operations.
light weight, small size, reliable performance, high safety, comfortable wearing, smooth breathing, broad vision, strong adaptability, convenient operation and maintenance, etc.
Model | PBA6.8 |
Cylinder volume | 6.8L |
Maximum gas storage capacity of cylinder | 2040L |
Maximum pressure of cylinder (rated working pressure) | 30MPa |
Protective time(min) | 50~68min(calculate as 30L/min) |
Working pressure | 300 bar |
Pressure relief device output | 0.6~0.9 MPa |
Alarm pressure | 5.5±0.5 MPa |
Alarm time | >15s |
Using time after alarm | 11min |
Alarm sound level | ≥90 db |
Safety valve opening pressure | 1.1~1.7 MPa |
Supply Valve Max. air flow rate | >500L/min |
Inhalation Resistance | ≤500 Pa |
Resistance | ≤1000 Pa |
Work temperature | -30℃ ~ 60℃ |
Overall weight(cylinder pressure 30MPa) | ≤12 Kg |
G.W | 17 Kg |
Firefighter Personal Protection Equipment Breathing Apparatus
Protect firefighters and rescue Personnel to against inhaling harmful toxic gases, fumes, and harmful pollutants suspended in the air during fire fighting or rescue operations.
light weight, small size, reliable performance, high safety, comfortable wearing, smooth breathing, broad vision, strong adaptability, convenient operation and maintenance, etc.
Model | PBA6.8 |
Cylinder volume | 6.8L |
Maximum gas storage capacity of cylinder | 2040L |
Maximum pressure of cylinder (rated working pressure) | 30MPa |
Protective time(min) | 50~68min(calculate as 30L/min) |
Working pressure | 300 bar |
Pressure relief device output | 0.6~0.9 MPa |
Alarm pressure | 5.5±0.5 MPa |
Alarm time | >15s |
Using time after alarm | 11min |
Alarm sound level | ≥90 db |
Safety valve opening pressure | 1.1~1.7 MPa |
Supply Valve Max. air flow rate | >500L/min |
Inhalation Resistance | ≤500 Pa |
Resistance | ≤1000 Pa |
Work temperature | -30℃ ~ 60℃ |
Overall weight(cylinder pressure 30MPa) | ≤12 Kg |
G.W | 17 Kg |
