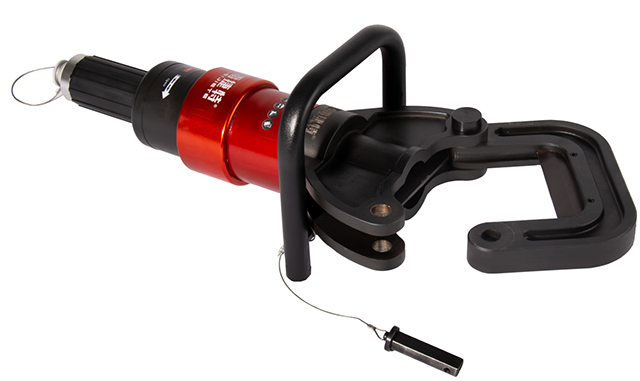

GYFG-72/60
WINSAFE
Hydraulic Pipe Sealer Features:
1、Without hydraulic hose, single hose single connector.
2、Connector: Axis of flat, single connector, switch tools with pressure.
3、Plastic anti-slip switch control, no sticking or sticking, make the operation more accurate.
4、Adopts a two-way hydraulic lock inside, which has a self-locking and pressure-holding function after the tool is released.
5、The cutter head has crushed and broken metal pipelines function, to reduce or prevent dangerous liquid leakage.
6、Light weight, small size, labor-saving, easy to operate and so on.
Hydraulic Pipe Sealer Specification:
Rated Working Pressure | 72MPa(720bar) |
Max. opening distance | 60mm |
Min. closing distance | 2mm±1mm |
Max. Sealing tube diameter | 60mm |
Maximum sealing wall thickness | 3.5mm |
Opening/closing time without loading | 6-8s |
Weight | 11kg |
Size | 640 x190x180mm |
Hydraulic Pipe Sealer Features:
1、Without hydraulic hose, single hose single connector.
2、Connector: Axis of flat, single connector, switch tools with pressure.
3、Plastic anti-slip switch control, no sticking or sticking, make the operation more accurate.
4、Adopts a two-way hydraulic lock inside, which has a self-locking and pressure-holding function after the tool is released.
5、The cutter head has crushed and broken metal pipelines function, to reduce or prevent dangerous liquid leakage.
6、Light weight, small size, labor-saving, easy to operate and so on.
Hydraulic Pipe Sealer Specification:
Rated Working Pressure | 72MPa(720bar) |
Max. opening distance | 60mm |
Min. closing distance | 2mm±1mm |
Max. Sealing tube diameter | 60mm |
Maximum sealing wall thickness | 3.5mm |
Opening/closing time without loading | 6-8s |
Weight | 11kg |
Size | 640 x190x180mm |
