MCH18/ET
WINSAFE

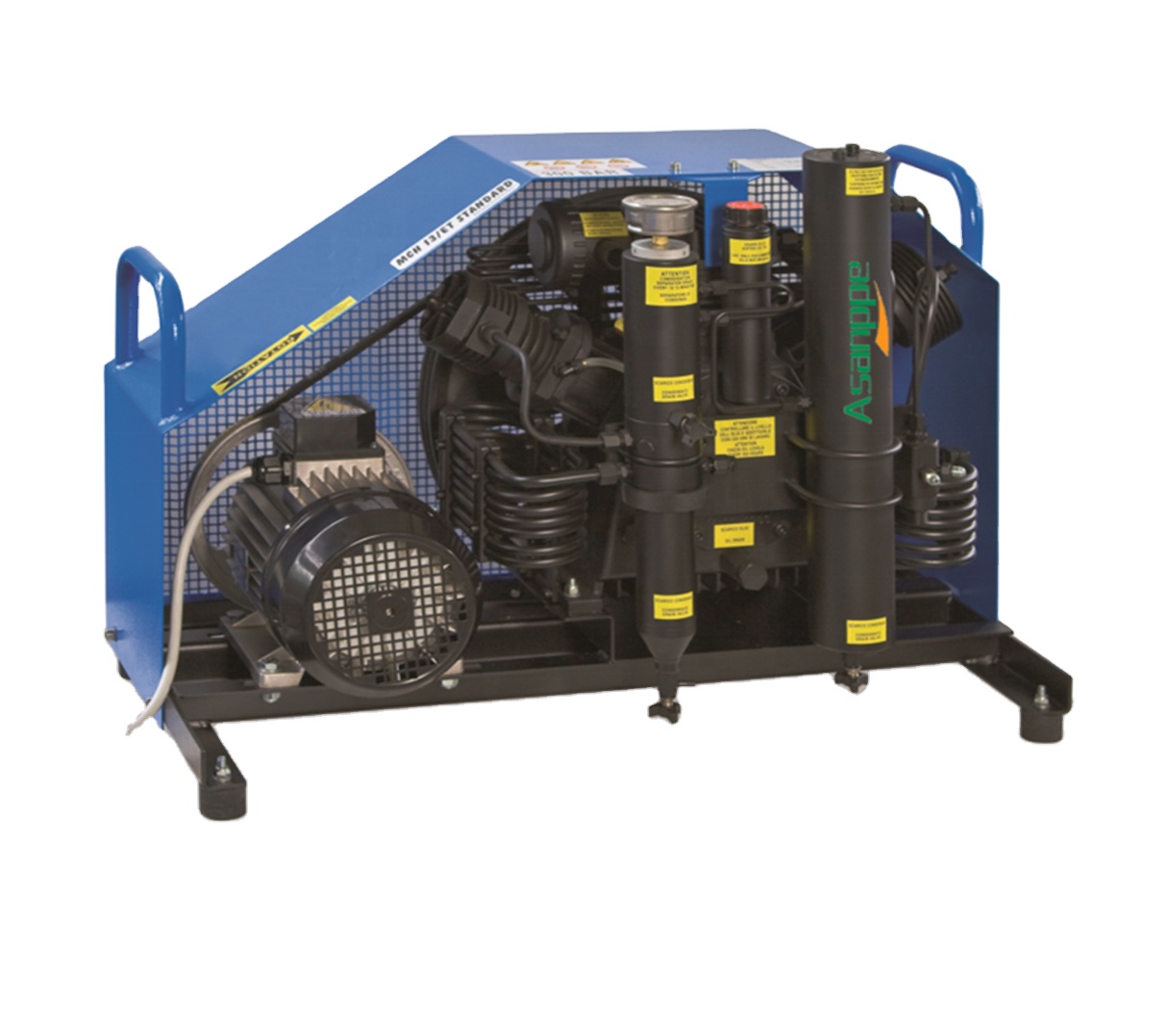

Air Compressor For SCBA
Model | |
Charging rate | 300L/min |
Filling time cylinder | 6.8L 0-300bar/6.8min12L 0-200bar/8min |
Working pressure | 225 Bar / 3200 Psi330 Bar / 4700 Psi |
Driven by | Three-phase electric motor |
Power | 7.5Kw |
Dimensions | height 88cm, width 92cm, depth 61cm |
Dry weight | 161Kg |
Noise pressure | 81 dB |
Number of stages and cylinders | 3 |
Lubricating oil capacity | 1600 cc (1.6 L) |
Lubricant | CE 750 |
Oil/moisture separator | 2 oil-water separator |
Filtration | Filter cartridge activated carbon and molecular sieve |
Safety valve | 2 inter stage, 1 last stage |
Breathing air | EN 12021 DIN3188 CGA E |
Automatic stop at final pressure | |
Max inlet pressure | 1bar |
Choose the connector type depends on your air cylinder | |
B C DIN 300bar(Standard) | B C INT 230bar |
B C INT 300bar | B C INT 230bar (Optional for Diving Customer ) |
Choose the voltage |
230 V - 50 Hz |
230 V - 60 Hz |
400 V –50 Hz |
440 V –60 Hz |
