Max. Lifting force(Q1 & Q2) : | |
---|---|
Availability: | |
Quantity: | |
Q 1 - 2
WINSAFE

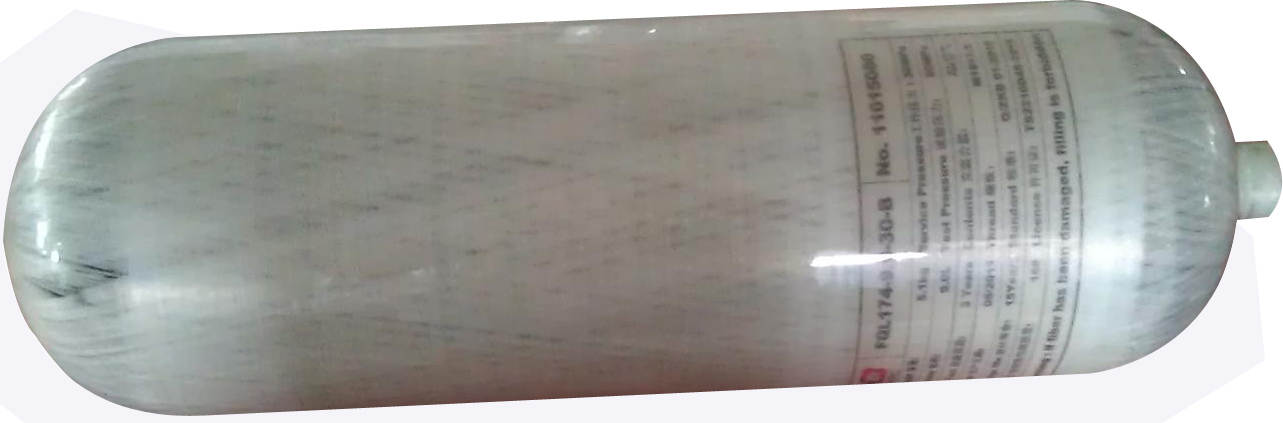

Globular Air Lifting Bag is used for on-site rescue of traffic accidents and house collapse rescue accidents. It has anti-static, anti-crack, wear-resistant, oil-resistant, and anti-aging properties. Power is provided by air source (high-pressure gas cylinder or foot-operated air filling pump).
Mode | Q1 | Q2 |
Max. Working pressure | 12bar | 12bar |
Max. Lifting force | 35T | 75T |
Max. Lifting height | 275mm | 445mm |
Max.Air capacity | 242L | 1030L |
Temperature to work | -30℃-+65℃ | -30℃-+65℃ |
N.W | 8.9kg | 18.5kg |
N.W add one protection plate | 12.4kg | 21.5kg |
N.W add two protection plates | 15.9kg | 24.5kg |
Minimum diameter after lifting | 410mm | 650mm |
Minimum diameter after deflation | 535mm | 870mm |
Max.height without load | 280mm | 450mm |
Max.height with protection plate | 330mm | 500mm |
Globular Air Lifting Bag is used for on-site rescue of traffic accidents and house collapse rescue accidents. It has anti-static, anti-crack, wear-resistant, oil-resistant, and anti-aging properties. Power is provided by air source (high-pressure gas cylinder or foot-operated air filling pump).
Mode | Q1 | Q2 |
Max. Working pressure | 12bar | 12bar |
Max. Lifting force | 35T | 75T |
Max. Lifting height | 275mm | 445mm |
Max.Air capacity | 242L | 1030L |
Temperature to work | -30℃-+65℃ | -30℃-+65℃ |
N.W | 8.9kg | 18.5kg |
N.W add one protection plate | 12.4kg | 21.5kg |
N.W add two protection plates | 15.9kg | 24.5kg |
Minimum diameter after lifting | 410mm | 650mm |
Minimum diameter after deflation | 535mm | 870mm |
Max.height without load | 280mm | 450mm |
Max.height with protection plate | 330mm | 500mm |
